Multi-Channel Monitors

Multi-Channel Monitors

MP-16 16 Channel Audio Monitor Panel

MP-16 16 Channel Audio Monitor Panel

MP-16

The MP-16 is a 16-channel audio monitor panel, which can be mounted on an EIA standard equipment rack (2 unit size). It allows monitoring 25/70/100 V high impedance speaker line, low impedance speaker line and line level audio signals by LED level meters. One of the 16 channels audio can be monitored with a built-in speaker or an optional headphone.

MP-032B Monitor Panel

MP-032B Monitor Panel

MP-032B

The MP-032B is a monitor panel that is designed to provide aural and visual monitoring for multi-channel sound and program system.

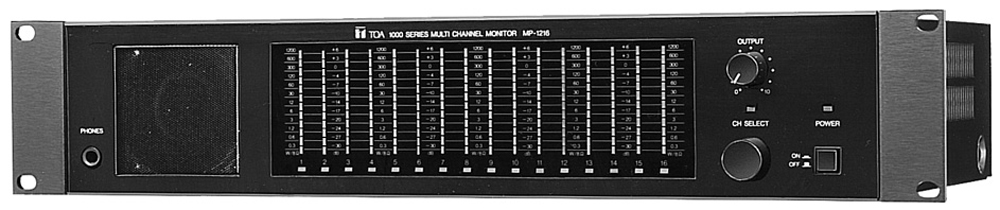

MP-1216 Multi-Channel Monitor

MP-1216 Multi-Channel Monitor

MP-1216

The signal level meter allows simultaneous monitor of 16 channels per unit. Any of the high-impedance speaker line output, low-impedance speaker line output, and line level output can be monitored by connecting it to the corresponding input. One of the 16 channels can be monitored with an internal speaker or headphone. By connecting two MP-1216 units, a maximum of 32 channels can be monitored.

MP-210 Monitor Panel

MP-210 Monitor Panel

MP-210 *AS Model*

The MP-210 monitor panel comes with a speaker and LED display. It allows overall operation of an equipment rack. Up to 10 amplifier output levels can be selected and monitored.
