PC-1860BS

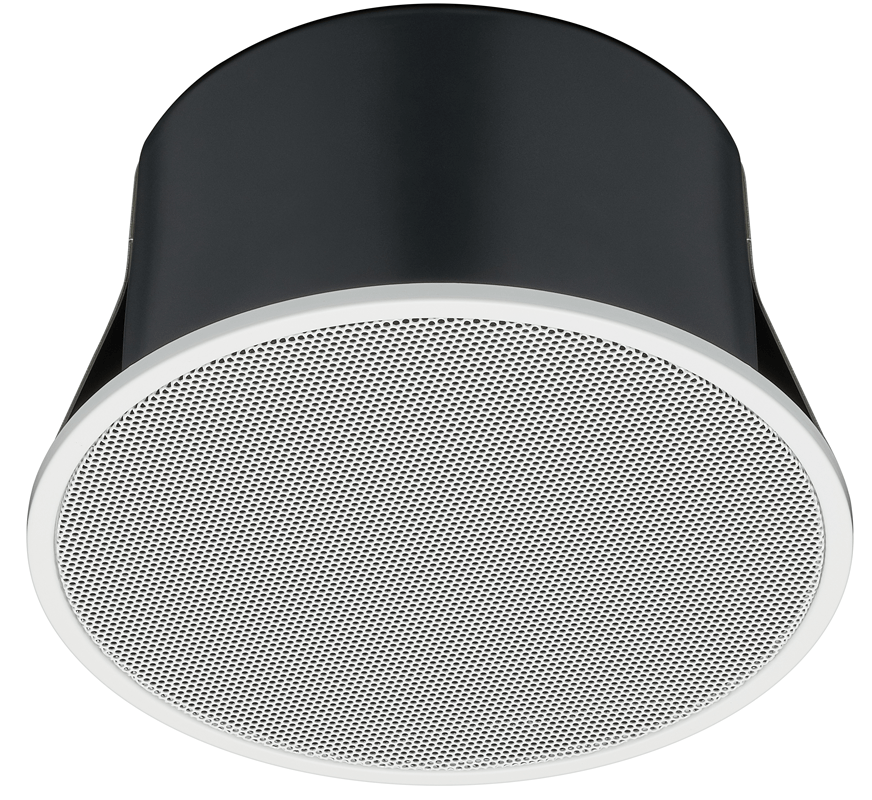

PC-1860BS is product with EN54-24 and BS 5839-8:2008 certification suitable for announcement and music. This speaker is equipped with Fire Dome to protect and prevents fire from spreading in the ceiling in case of an emergency situation. Speaker's thin panel design harmonizes with the venue's architecture and decor, blending it neatly into the environment.

BS certification EN certification

Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 95 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
93 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise)
81 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise)
Max. Sound Pressure Level 100 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise)
88 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise)
Frequency Response 170 Hz - 20 kHz (peak -20 dB)
Coverage Angle (-6 dB) Horizontal and Vertical: 165° (500 Hz), 175° (1 kHz), 165° (2 kHz), 70° (4 kHz) according to EN54-24
Environmental Type A (indoor applications)
Speaker Component 12 cm (5") cone-type
Operating Temperature -10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing Hole Mounting hole: φ156±3 mm (φ6.14"±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring catch
Applicable Cable Solid wire: 0.8 - 6 mm² (AWG 18 - 10)
Connection 2-Steatite connector (3 pole)
Finish Frame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Fire Dome: Steel plate, black, paint
Dimensions φ180 × 5 (exposed section) + 100 (D) mm (φ7.09" × 0.2" + 3.94")
Weight 1.1 kg (2.43 lb)
Accessory Paper pattern …1, Rubber grommet ...2
